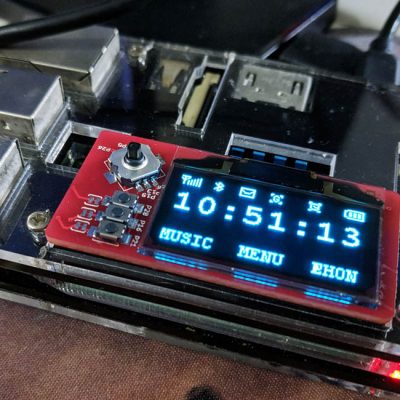

1.3” OLED Display Mini Shield for Raspberry Pi

Description

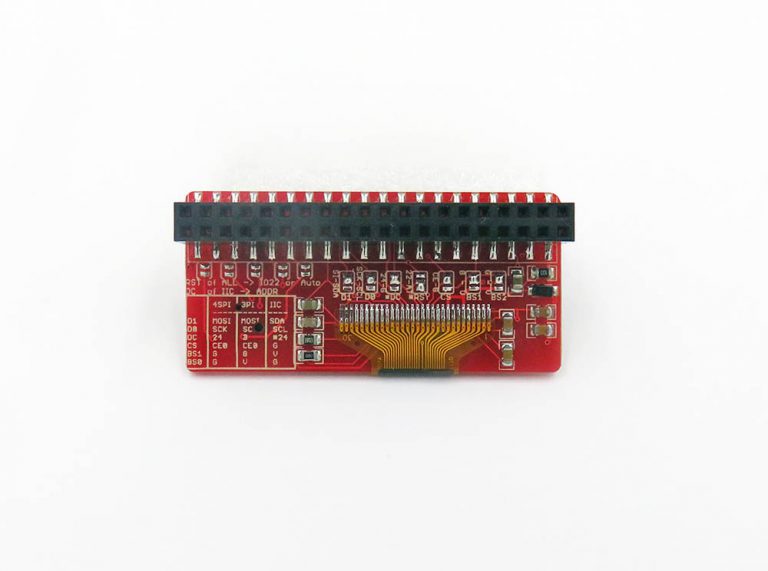

• On Board 1.3” Blue color OLED. Support 4-SPI (default), 3-SPI, IIC interface Mode, selected by backside soldering jumper.
• Compatible 2×20 raspberry pi header.
• Support input buttons, can be disconnected by jumper

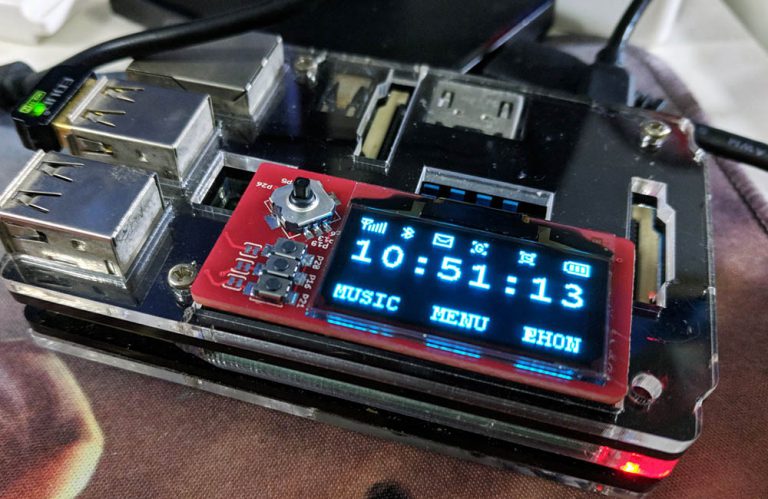

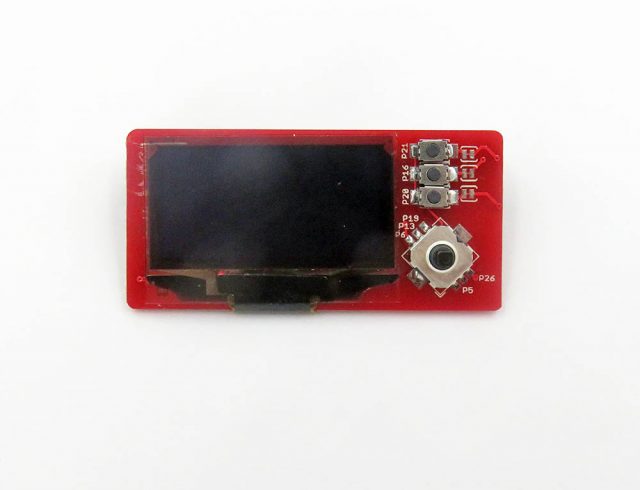

  • Three control buttons GPIO16, 20, 21
  • Joystick control directions: up GPIO6, bottom GPIO26, left GPIO5, right GPIO19, middle GPIO13.

Default wiring option is 4-SPI, if you want to use IIC or 3-SPI, you must cut off the lines first.

• Demo code, schematic please see on this page.
