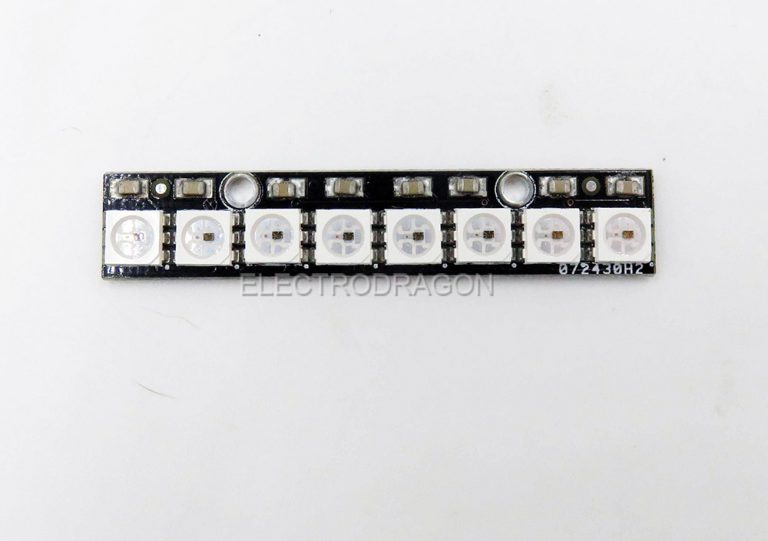

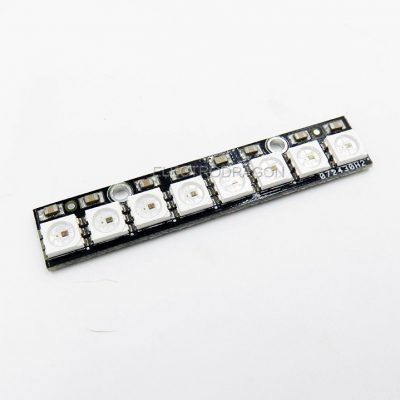

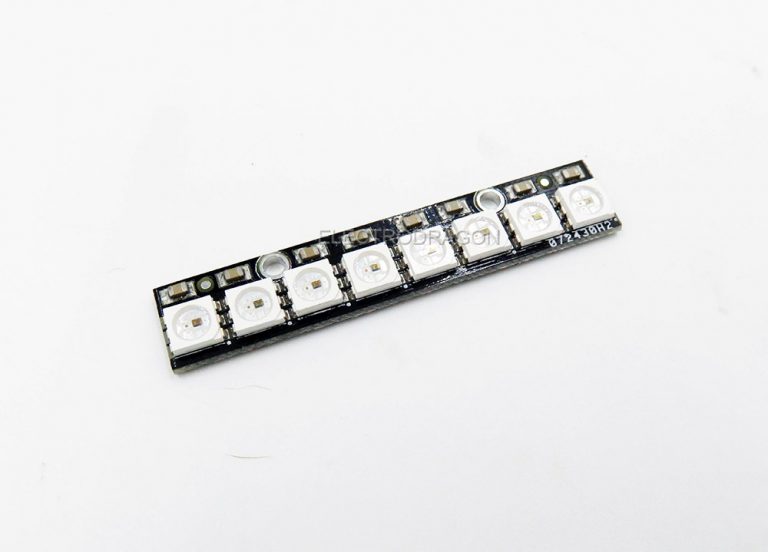

8-LED WS2812 Neopixels Stick Board

Description

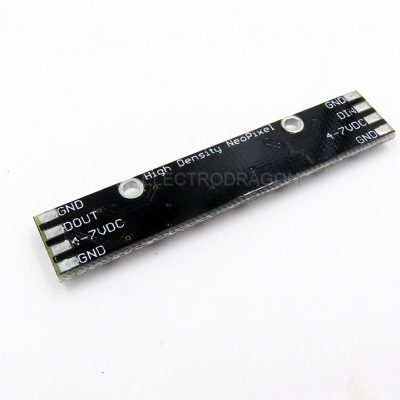

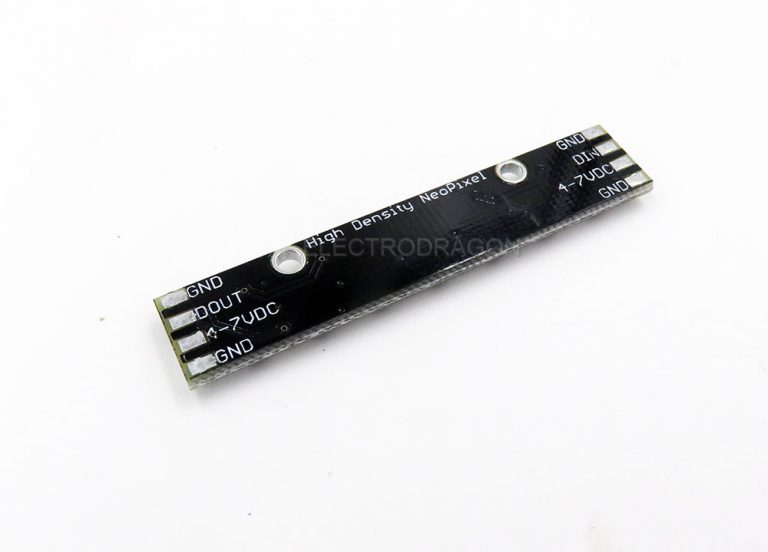

This is the 8-LED WS2812 5050 RGB LED Stick Board, backside SMD soldering pins.

Features of WS2812:

• Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.
• The control circuit and the LED share the only power source.
• Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
• Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not
  accumulate.
• Built-in electric reset circuit and power lost reset circuit.
• Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
• Cascading port transmission signal by single line.
• Any two point the distance more than 5m transmission signal without any increase circuit.
• When the refresh rate is 30fps, cascade number are not less than1024 points.
• Send data at speeds of 800Kbps.
• The color of the light were highly consistent, cost-effective.

Documentation: Arduino library can be downloaded from here.
