CSR Custom USB-SPI Bluetooth Config Programmer Tool

Description

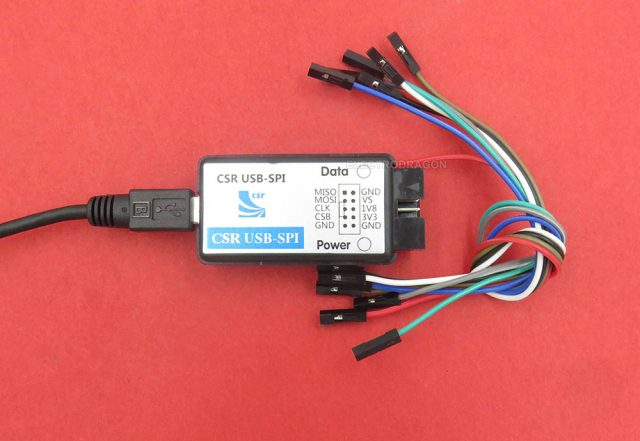

Board Features:

• Provides 3.3V and 1.8V dual power output for easy use!
  • CSR86XX series are 1.8V IO, if use 3.3V, failure is about 5/1000.
• Increase SPI level switching function, support 3.3V and 1.8V!
  • Pin VS -> NC = 1.8V IO, default
  • Pin VS -> GND = 3.3V IO
• Increase PTC current limiting protection, limit current 500MA, but then worry about the wrong
• connection, short circuit is not afraid!
• The power supply is handled more cleanly, decoupling with tantalum capacitors, and built-in two 220UF tantalum capacitors!
• 2 regulator ICs + 2 AVX tantalum capacitors + 1 voltage switching IC + 1 PTC overcurrent component
• Include reset pin can reset programmer.
• Package include programmer, mini-USB cable, 6x dupont connection pins.

USB-SPI Features:

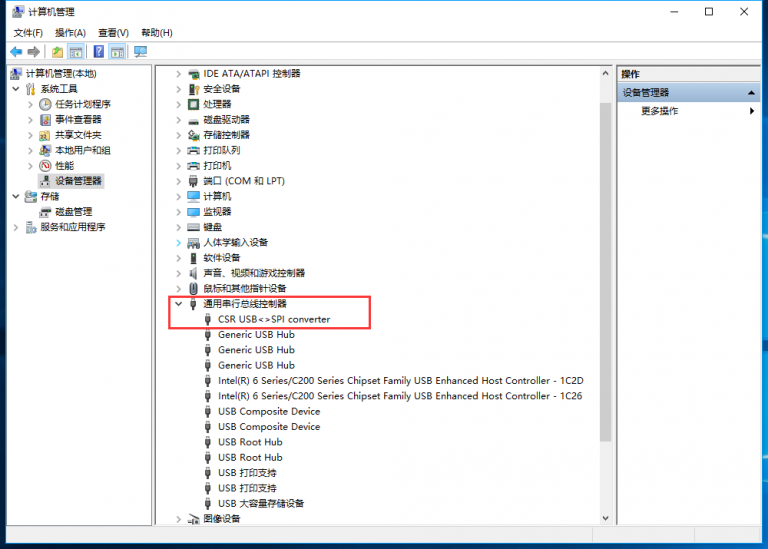

• CSR USB-SPI debugger is a real USB interface, much faster than the parallel port, which solves the trouble of the computer without the parallel port user.

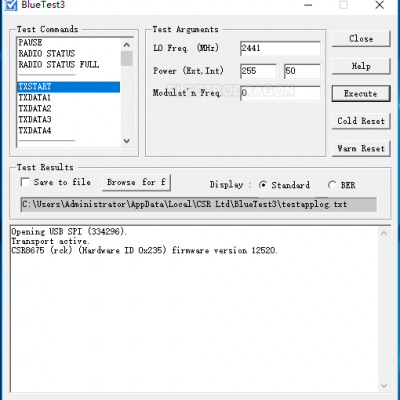

• CSR USB-SPI supports CSR full range of debugging tools, including BlueFlash, PSTOOL, BlueTest3, BlueLab and so on.
• CSR USB-SPI can download debugging program through Bluelab, support breakpoint debugging, single-step debugging, etc., through BlueFlash programming.
• Support all CSR series of Bluetooth chips, for example
  • BC2 series (eg BC215159A, etc.)
  • BC3 series (eg BC31A223, BC358239A, etc.)
  • BC4 series (eg BC413159A06, BC417143B, BC419143A, etc.)
  • BC5 series (eg BC57F687, BC57E687, BC57H687C, etc.)
  • BC6 series (eg BC6110, BC6130, BC6145, CSR6030, BC6888, etc.)
  • BC7 series (eg BC7820, BC7830, etc.)
  • BC8 series (eg CSR8605, CSR8610, CSR8615, CSR8620, CSR8630, CSR8635, CSR8640, CSR8645, CSR8670, CSR8675, etc.)
  • CSRA6 series (eg CSRA64110, CSRA64210, CSRA64215, etc.)
  • CSR10 series (for example, CSR1000, CSR1001, CSR1010, CSR1011, CSR1012, CSR1013, etc.)
  • CSRB5 series (eg CSRB5341, CSRB5342, CSRB5348, etc.)
  • QCC3/QCC5 series (eg QCC3008, QCC5120, etc.)
• Support all Windows operating systems: – Windows 98SE – Windows ME – Windows 2000 SP4 – Windows XP SP2 and above (32 & 64 bit) – Windows Server 2003 (32 & 64 bit) – Windows Server 2008 / 2008 R2 (32 & 64 bit) – Windows Vista (32 & 64 bit) – Windows 7 (32 & 64 bit)
• Small size, easy to carry, product size: 49*28*14m

Provide entry-level programming support, online guide can see here.
