Name: Current Loop to Analog Voltage Converter, 4-20mA to 0-5V
SKU: ITF1006
Price: 1.60 USD
Availability: InStock

Current Loop to Analog Voltage Converter, 4-20mA to 0-5V

0 out of 5

$1.60

SKU: ITF1006 Category: Current-Loop Tags: analog, current-loop, industrial, LM324

Description

Covert current value 4-20mA to analog voltage in specific range 0-5V, via on board amplifier.

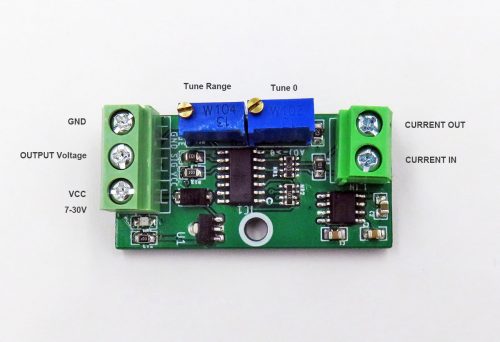

Use Guide:

Input current 4mA * on board resistor 100R = 0.4V
Tune for 0: Tune on board 10K trim-pot, input voltage via LM324 subtractor, minium value change from 0.4V to 0V
Tune for range: Tune on board 100K trim-pot, output voltage via LM324 amlifier to maximium range 5V

VCC board supply 7-30V. On board power LED indicator.

Weight	0.01 kg
