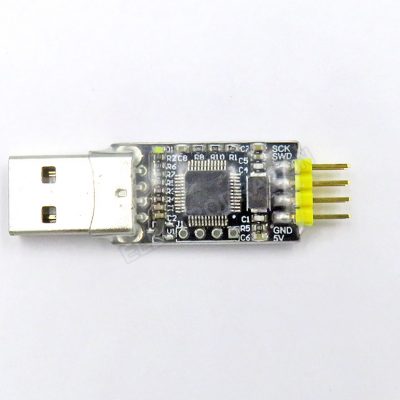

DAPLink CMSIS-DAP Programmer Debugger, Cortex, STM32

Description

Update to R2 version red board, please notice.

• Hardware based on chip STM32F103C8T6, firmware based on X893 github open source project.
• WIN10 driver free, but may need install in WIN7/8
• Capable to program all ARM Cortex M core chips.
• Design and supported by ARM, (St-link for STM32, designed by ST company)
• Support our NRF51822 boards, tested with our nrf51822 board in arduino IDE
• Work well in MDK IDE, but NOT supported in IAR, please notice. Recognized as (CMSIS-DAP debugger)
• Support debugging in MDK IDE
• Fast speed, slightly slower than Jlink V8
• Include extra driver, can also use as a normal USB-TTL tool.

R2 Board Updates:

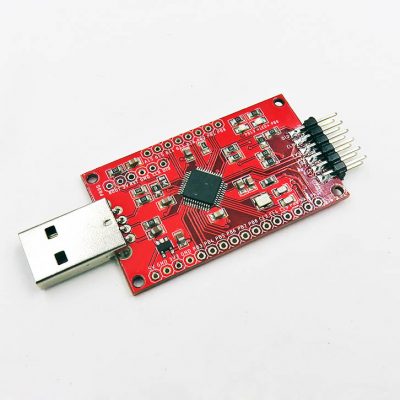

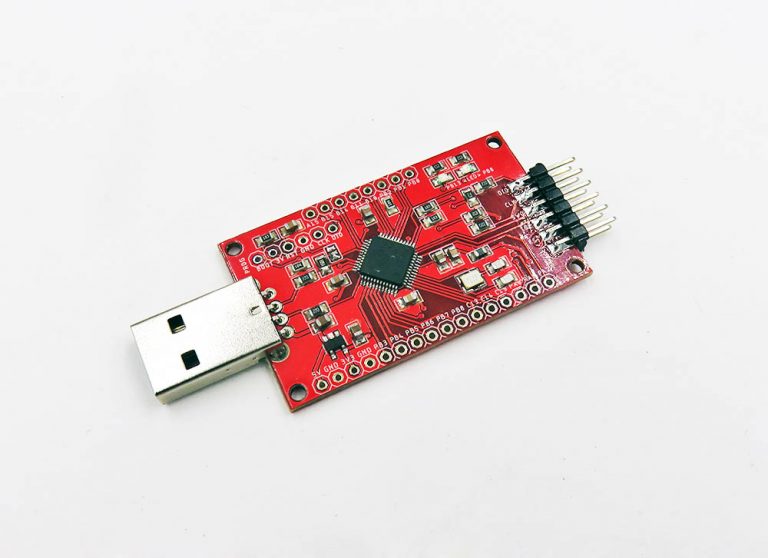

• Lead out all pins for use, when firmware flashed, can be used as a programmer, if not it can be used as a development board.
• Also can be used as USB-TTL serial tool.
• Programmer PORT SWD:
  • front: SW_DIO, SW_CLK, SWO, TDI, RST (reset)
  • back: VREF, U1TXD, U1RXD, GND, 3V3
  • For STM32 programming, need connect SW_DIO, SW_CLK, RST, 3V3 power and GND.
• Two status LED PB12, PB13

Use guide and documents see here.
