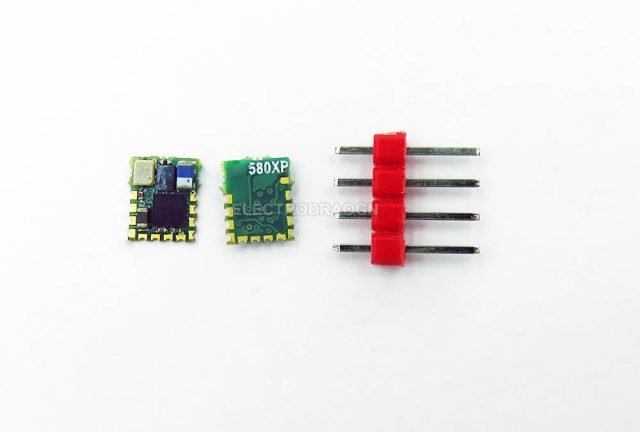

EDJ-580 Bluetooth Transceiver Module, Serial UART, DA14580

Description

• Comprehensive BLE4.2 certifications, BQB, FCC, CE, etc
• TX = 0 dBm, RX = -93 db
• Super low power consumption:
  • sleep < 1.5uA
  • 1 second broadcasting 11uA
  • 2 seconds broadcasting 6.3uA
• No delay speed up to 19200 bps, no need seperate packet.

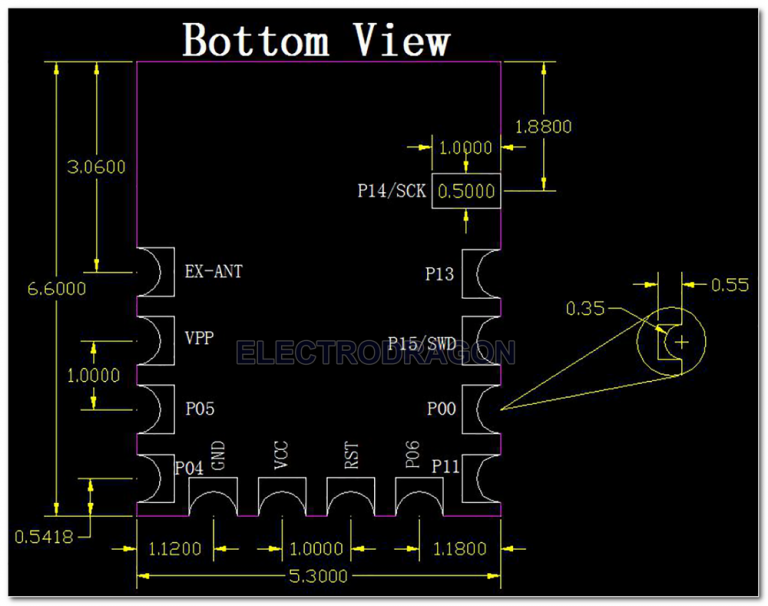

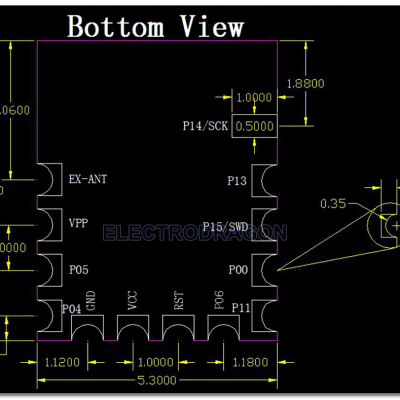

• Super mini size 5.3 x 6.6 mm include antenna
• Working temperature -40 ~ +85 C
• VCC power 2.5 – 3.7V
• On board antenna, in room 10 meters, outdoor 20 meters
• Also support seamless switching between normal boardcasting and iBeacon.

For documentations, please visit our wiki page here, or find in our bitbucket folder. Please notice many details in Chinese.
