PIC PIC16F72 Mini Development Board

Description

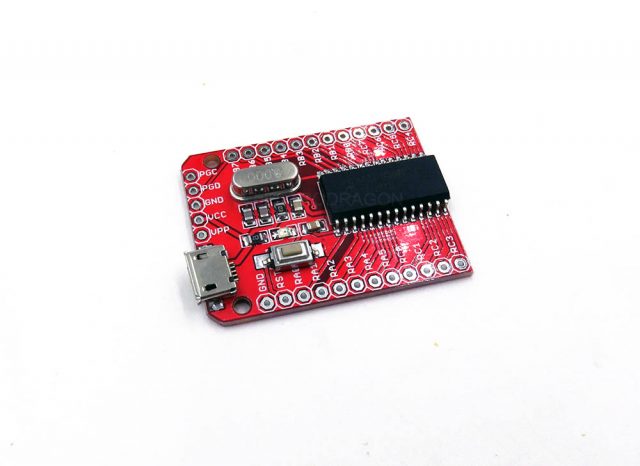

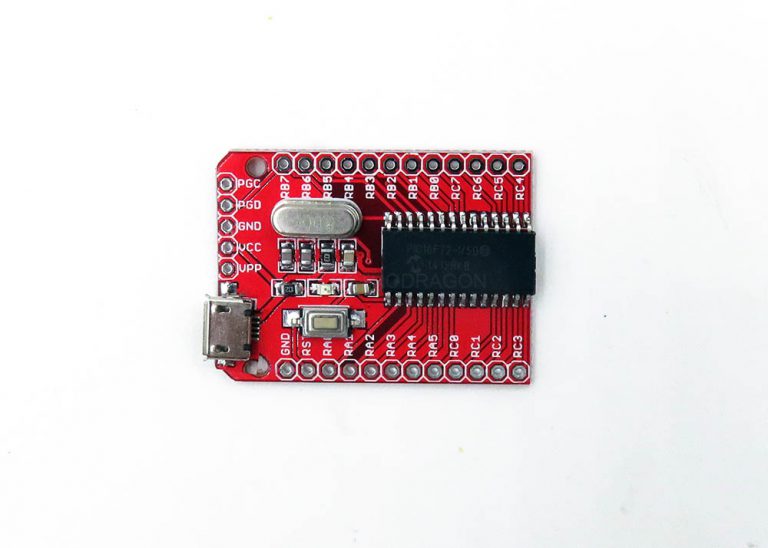

PIC16F72 is a little classical IC, but cheap enough as a start point for PIC.

PIC16F72 has following features:

25 I / O ports, 12 interrupts, 11 channels 8-bit AD conversion, two 8-bit timers, a 16-bit timer, 128 bytes SRAM, addressable general purpose synchronous / asynchronous transceivers, 2048 words of flash program memory.

Board Features:

• All I / O ports are led to facilitate the user external to other peripherals.
• On-board 8MHZ crystal.
• On-board power indicator.
• On-board reset button.
• MicroUSB mini power jack.
• Lead out programming interface to facilitate users to download debugging, PICkit can easily program it well.
• Size 37MM * 32MM.

Schematic please see on this page.
