Balance Robot, Self-Balancing, Stabilizer, Arduino Shield

Description

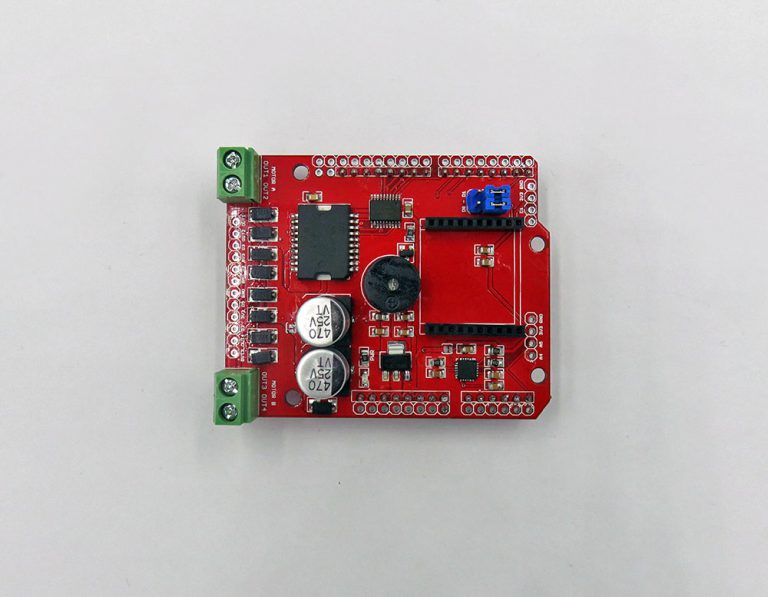

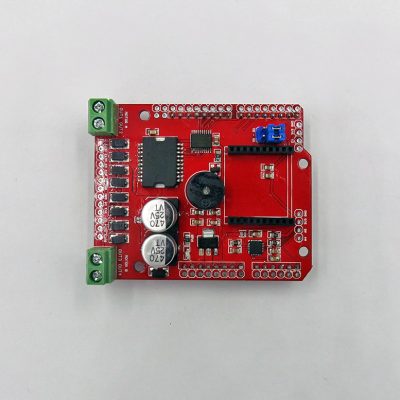

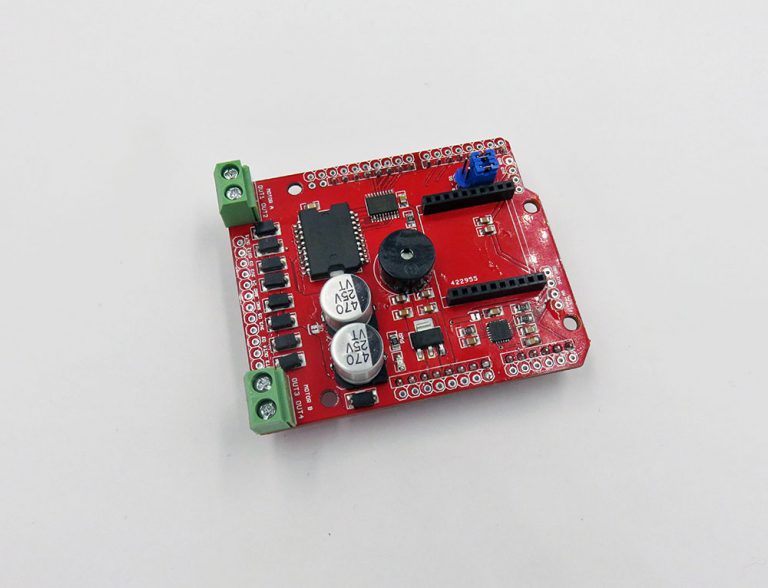

Stablizer Shield is an expansion board for Arduino, which adopts the world’s first high precision 6-axis attitude sensors.

Meanwhile, the on-board chip L298P is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors.

What’s more, with a standard XBee socket that can connect Bluetooth or WiFi module, users can use this stabilizer shield with Arduino to make some project like stabilizer car, robot car and so on.

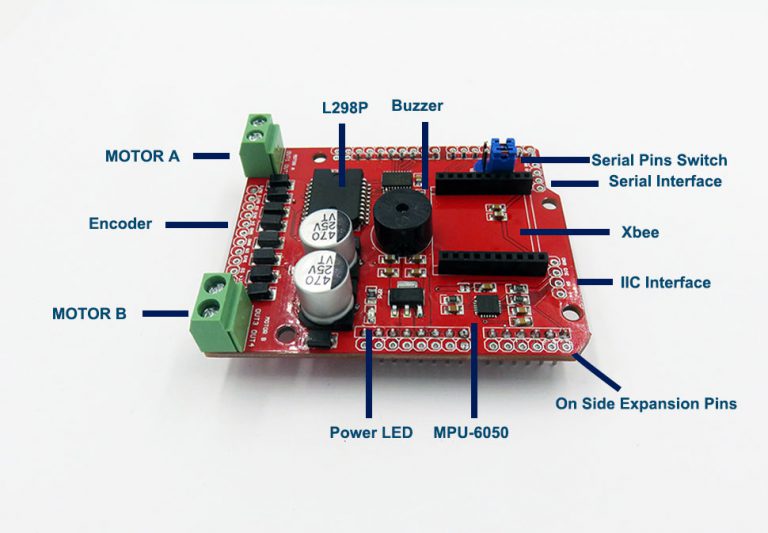

Features

• On board motor control IC 298P
• On board 6-axis attitude sensors integrated with gyro and accelerator MPU6050
• A standard Xbee socket – you can plug the Bluetooth/Wifi Module w Xbee interface in this socket
• Support stackable extension

Specification

• PCB Size 74.68X55.12X1.6mm
• Power supply 7~18V
• Indicator PWR

Documentation please see on this page.
