[Replaced] SIM800C IC – GSM GPRS BT3.0 [Version]

Description

These series is replaced by R800 or A7670, please search new version in our store.

For version:

For the terms definition please see this page.

The version we sell now are:

• SIM800C-24M: Basic version for cheapest price
• SIM800C-EAT: SDK available, API guide available.

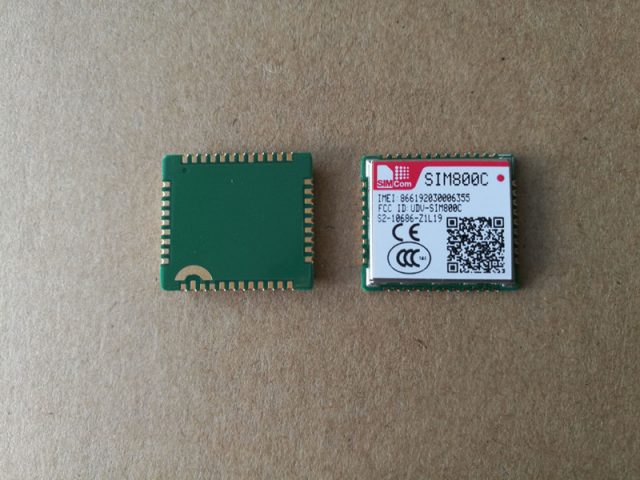

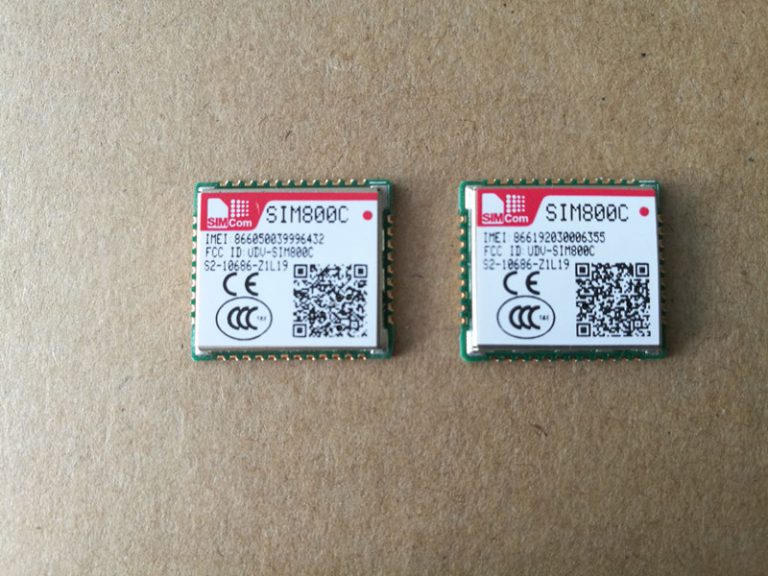

SIM800C is a quad-band GSM / GPRS module for the castle hole package. Its stable performance, the appearance of small, cost-effective, able to meet the various needs of customers.

SIM800C operating frequency of GSM / GPRS 850/900/1800 / 1900MHz, low power consumption can be achieved voice, SMS and data transmission.SIM800C size of 17.6 * 15.7 * 2.3mm, can be applied to a variety of compact product design requirements.

Documentation please see this wiki page.

Key Features

• • Quad Band 850/900/1800/1900 MHz
• • GPRS multi-slot class 12/10
• • GPRS mobile station class B
• • Meet the GSM 2/2 + standard
• Category 4 (2 W @ 850/900 MHz)
• Class 1 (1 W @ 1800 / 1900MHz)
• • Bluetooth 3.0 + EDR
• • Size: 17.6 * 15.7 * 2.3 mm
• • Weight: 1.3 grams
• • Control via AT command (3GPP TS27.007, 27.005 and
• SIMCOM Enhanced AT Command Set)
• • SIM application kit
• • Supply voltage range: 3.4 ~ 4.4V
• • Low power consumption
• • Operating temperature range: -40 to + 85 ° C

Data transmission

• • GPRS class 12: maximum 85.6 kbps (downlink rate)
• • Support for PBCCH
• • Encoding scheme CS 1,2,3,4
• • PPP protocol stack
• • USSD

Voice

• • Tricodec
  • – half rate (HR)
  • – full rate (FR)
  • – Enhanced full rate (EFR)
• • AMR
  • – half rate (HR)
  • – full rate (FR)
• • Supports echo suppression algorithms

interface

• 42 SMT pins
• • Analog audio interface
• • Supports RTC
• • USB interface
• • Serial interface
• • SIM card interface (3V / 1.8V)
• • GPIO
• • ADC
• • GSM antenna pad
• • BT antenna pad

SMS

• • Point-to-point MO and MT
• • SMS broadcast
• • Text and PDU modes

Software features

• • 0710 MUX protocol
• • Embedded TCP / UDP protocol
• • FTP / HTTP
• • MMS
• • E-mail
• • DTMF detection
• • Interference detection
• • recording
• • SSL
• • Bluetooth (optional)

Compatibility

• • AT cellular command interface
• * High version supports TTS (Chinese) and EAT functions
