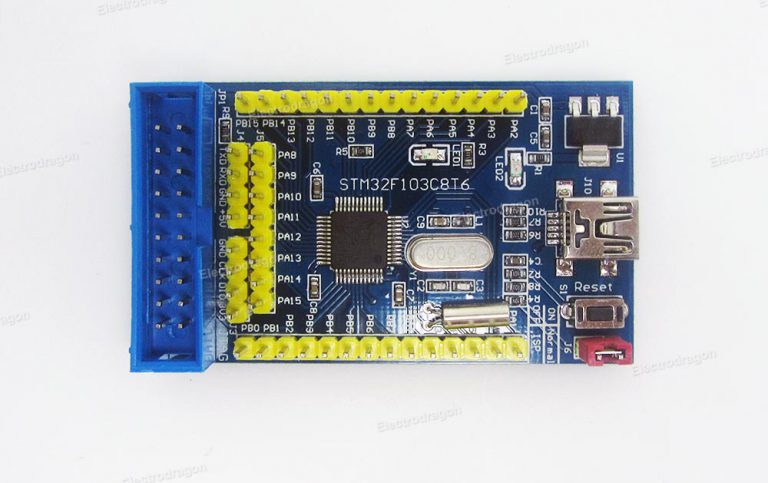

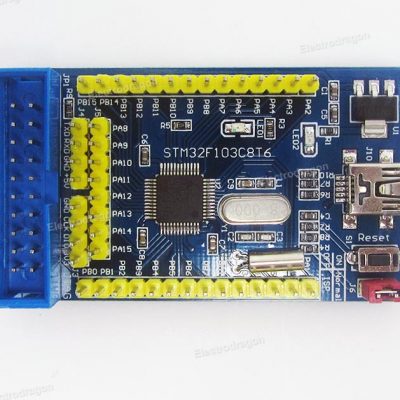

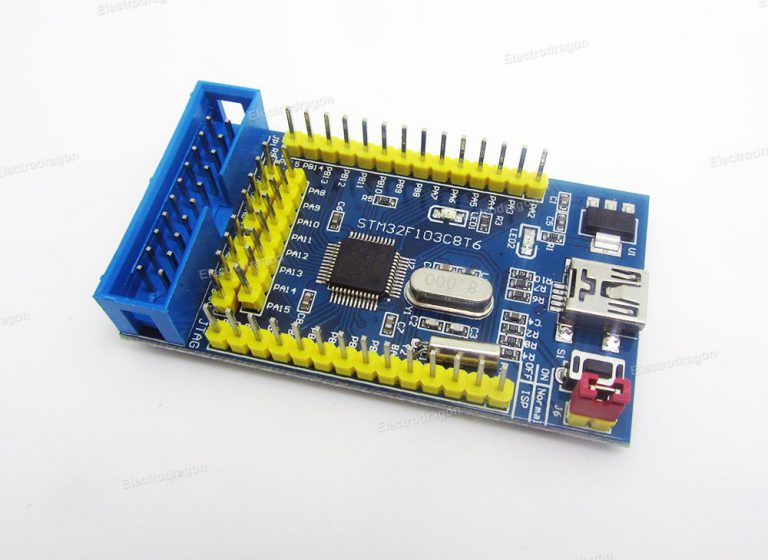

STM32F103C8T6 Mini Dev Board

Description

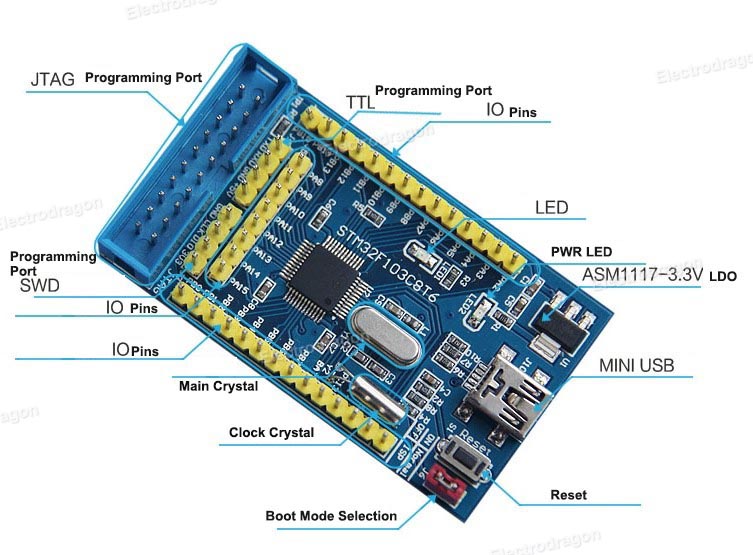

• STM32-F103C8 main chip, soldered onto the motherboard
• 8M crystal (up to 72M by chip PLL) ST Official standard parameters
• LM1117-3.3V voltage regulator chip, providing maximum 800mA current
• MiniUSB interface, you can give the system version powered USB communication functions reserved
• Reset (download) button
• A set of jumper pins function switch
• Standard JTAG download port, support JLink, ULINK, STLink
• Standard SWD download port, support JLink, ULINK, STLink
• User IO port all the leads
• One power indicator LED
• Reserved functioning LED, is used to verify the basic functions of IO port
• Size: 35x60mm
• Two large filter capacitors to improve the stability of board

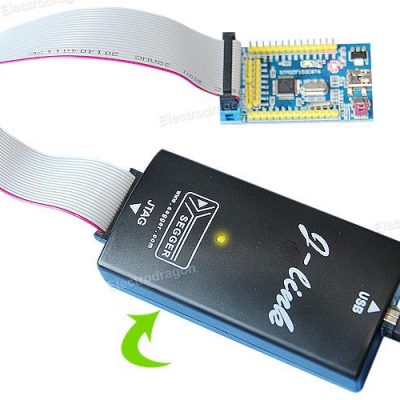

• Attached picture show how it connected with JLINK V8, ST link V2, and USB-TTL downloader. None of this downloader included, only main PCB board included.

Programming:

• Reserved serial download interface, you can download code by using serial-TTL USB port
• Boot 0 to GND, Boot 1 to 3V3, and using USB-TTL tool: RX->TX    TX->RX   GND->GND
• remove Boot 0 and 1, restart it.

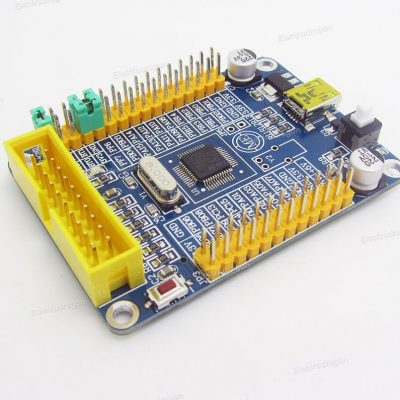

Note: Board updates on October 2014 with new layout.

Documentation: Schematic this on this page.
