BQ Wireless Charge Receiver Board QI

Description

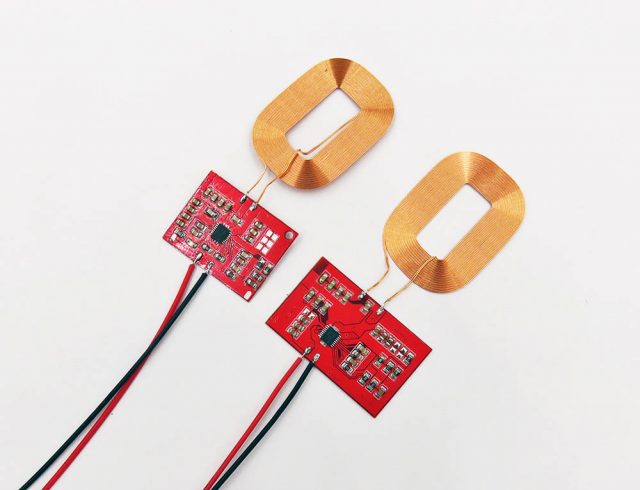

Based on TI QI standard wireless charge solutions, can receive power from any QI compatible transmitter.

Coil size 40×28 mm outside, and 22×10 inside, inductance is about 10uh, compatible with QI standard.

Includes two 10CM soldered power wires, negative and positive.

BQ51013B gives 5V up to 1A receiving capability.

• Tested charging current is about 0.5-0.8A for our board.
• Can be designed as USB 5V charge.
• Board size 40x25mm, 0.6mm thickness.

BQ51050 supports 4.2V lithium battery up to 1A charge management.

• Tested charging current is about 0.6-0.8A when battery 3.7V, 0.2-0.3A when battery 4.1V, stop charge when battery voltage nearly reach 4.2V.
• On board power indicator, on when charging, off when battery is full.

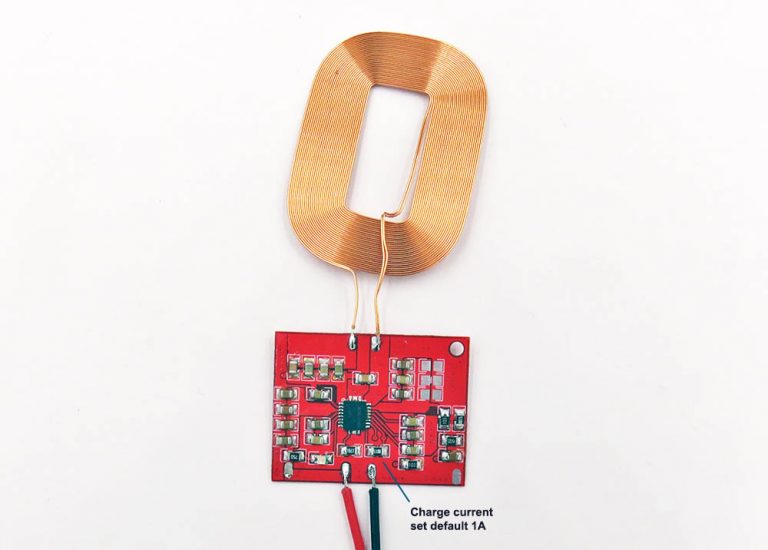

• Configurable charge current by resistor, default use 510R for 1A.

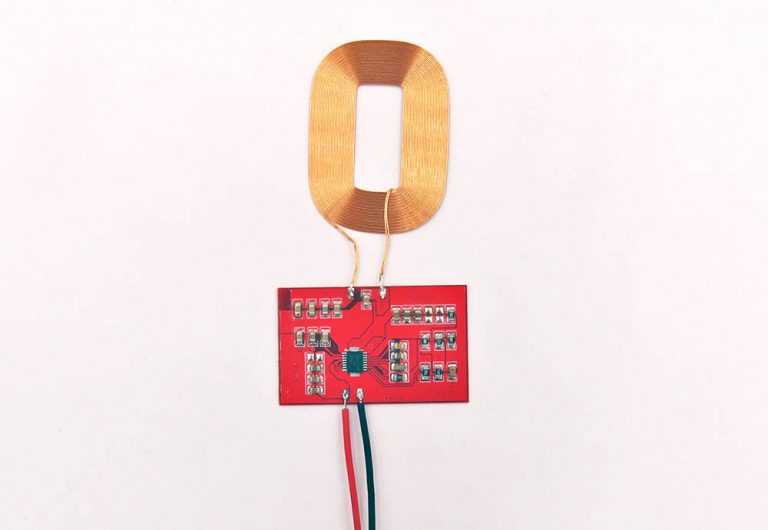

• Board size 31x24mm, 0.6mm thickness, good for embedded projects.
• Must connect to a lithium battery first, otherwise this can not work.

Documentation please see on this page.
